T-handle Ball Valve Lockout 151748-151749
in stock
Image 1 / 5

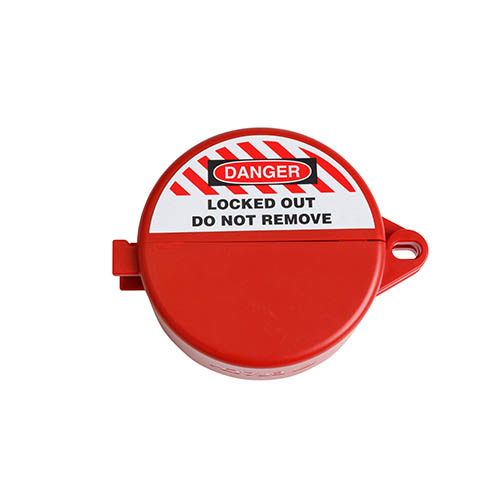

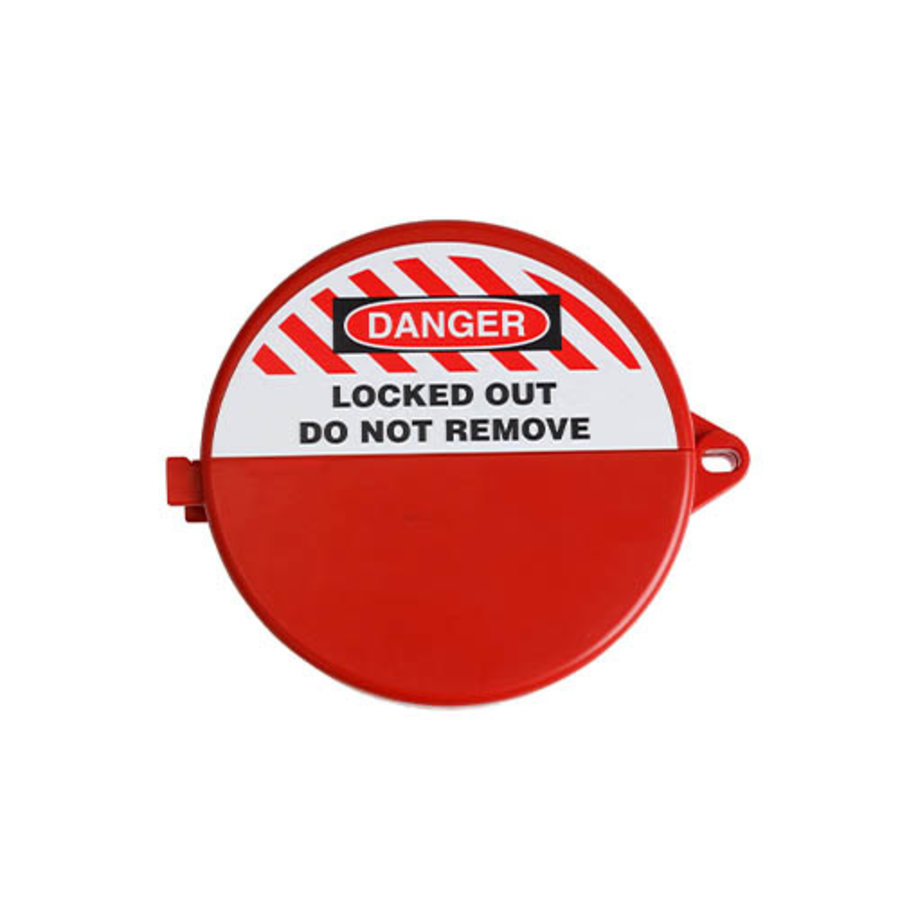

T-handle Ball Valve Lockout 151748-151749
in stock
Ball valve lock-out that fits most T-handle ballvalves on PVC pipes. Available in 2 different sizes.
Full warranty on all our products
Full warranty on all our products
Prefer a quote first? Click on "request quote" in your shopping cart
-
Description
Single-piece lockout device for locking T-handle ball valves on PVC pipes
- Fits most T-handle ball valves on PVC pipes
- Adjustable design for optimal fit
- Easy to use
- Material: ABS
- Dimensions small: 107.90 mm (Dia) x 44.40 mm (D)
- Dimensions large: 158.70 mm (Dia) x 50.80 mm (D)
- Maximum number of padlocks: 1
- Max padlock shackle diameter: 7.10 mm
- Min. padlock bracket height:20.00 mm
- Available in 2 different sizes:
Small - 151748- Suitable for pipe sizes: 12.70 mm to 25.40 mm
- Size of Valve Lever: 31.00mm - 40.00mm
Large - 151749
- Suitable for pipe sizes: 31.75mm to 50.80mm
- Size of Valve Lever: 31.00mm - 57.00mm
-
Specifications
Material: ABS Padlock holes: 1 Temperature range: - ATEX certified: - Diameter valve: 12,70 to 25,40 mm or 31,75 to 50,80 mm -
Single-piece lockout device for locking T-handle ball valves on PVC pipes
- Fits most T-handle ball valves on PVC pipes
- Adjustable design for optimal fit
- Easy to use
- Material: ABS
- Dimensions small: 107.90 mm (Dia) x 44.40 mm (D)
- Dimensions large: 158.70 mm (Dia) x 50.80 mm (D)
- Maximum number of padlocks: 1
- Max padlock shackle diameter: 7.10 mm
- Min. padlock bracket height:20.00 mm
- Available in 2 different sizes:
Small - 151748
- Suitable for pipe sizes: 12.70 mm to 25.40 mm
- Size of Valve Lever: 31.00mm - 40.00mm
Large - 151749
- Suitable for pipe sizes: 31.75mm to 50.80mm
- Size of Valve Lever: 31.00mm - 57.00mm
Material: | ABS |
Padlock holes: | 1 |
Temperature range: | - |
ATEX certified: | - |
Diameter valve: | 12,70 to 25,40 mm or 31,75 to 50,80 mm |
