Clamping Cable Lockout for Valves 170481
View product
|
Clamping Cable Lockout for Valves 170481
in stock
Image 1 / 3
Clamping Cable Lockout for Valves 170481
in stock
Clamping Cable Lockout for locking out ball valves, gate valves and pneumatic valves even in tight spaces
Full warranty on all our products
Full warranty on all our products
Prefer a quote first? Click on "request quote" in your shopping cart
-
Description
Lockout-Tagout for mechanical hazards
Cable lockout with quick-release clamp for ball, handwheel, and butterfly valves. Suitable for locking valve handles or pipes up to 6.2 cm wide.
The cable lock is easy to attach.

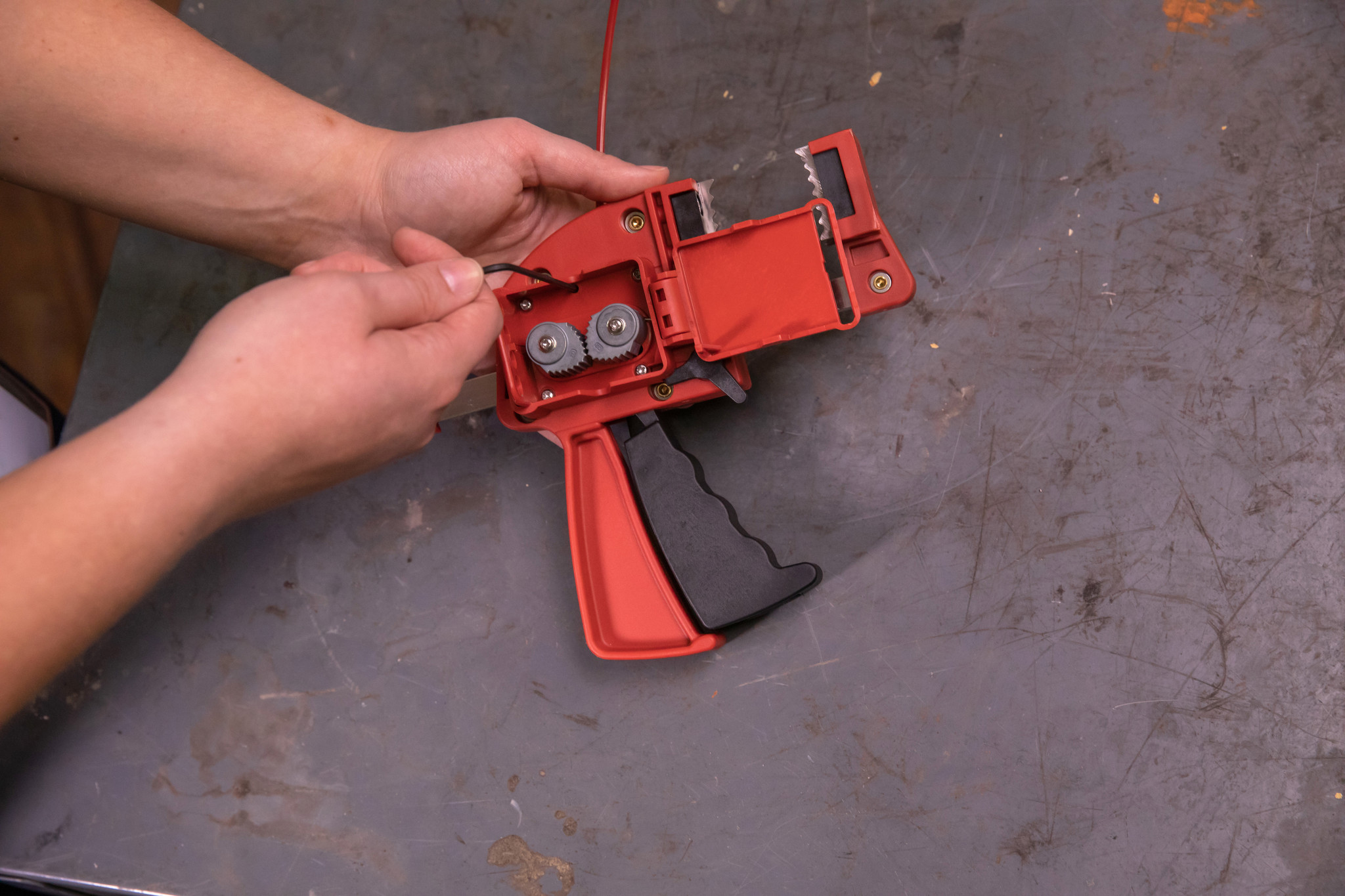

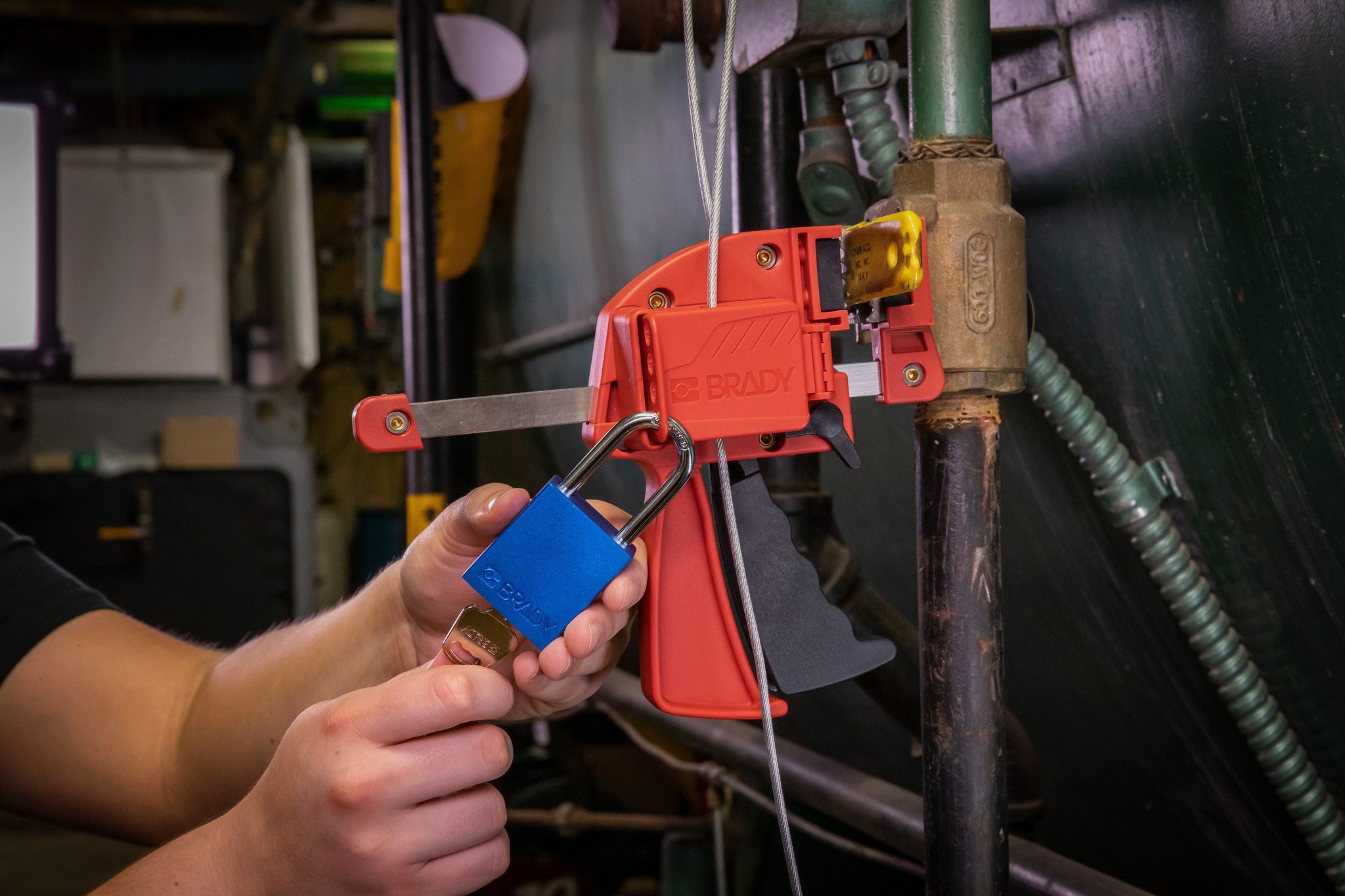

Squeeze the clamp, pull the cable through, close the valve, pull tight and apply the padlock- The metal cam wheels grip the cable firmly, the lockable safety cover prevents the cable from being released or manipulated.
- The cable can be pulled tight but not released when the safety cover is closed.
- Max. clamping range: 6.2 cm
- Material: ABS
- Cable material: Steel with PVC coating
- Cable length: 244 cm
- Colour: Red
- Max. Operating temperature: 120 °C
- Min. operating temperature: -20 °C
4 padlock holes for attaching 4 safety padlocks
- Max. Padlock shackle diameter: 7.11 mm
- Min. padlock bracket height: 4.57 mm
Dimensions
- Dimensions - Width: 217.93 mm
- Dimension - Height: 177.29 mm
- Dimension - Depth: 64.77 mm
-
Specifications
Material: Glass-filled Nylon, PVC Coated Steel Padlock holes: 4 Temperature range: -20 °C tot +120 °C Dimension: 217.93 mm (W) x 177.29 mm (H) x 64.77 mm (D) ATEX certified: - Label: Danger - do not operate Chemical resistant: - Corrosion resistant: - UV-stable: - Color: Red -
-
Video
Lockout-Tagout for mechanical hazards
Cable lockout with quick-release clamp for ball, handwheel, and butterfly valves. Suitable for locking valve handles or pipes up to 6.2 cm wide.
The cable lock is easy to attach.
Squeeze the clamp, pull the cable through, close the valve, pull tight and apply the padlock
- The metal cam wheels grip the cable firmly, the lockable safety cover prevents the cable from being released or manipulated.
- The cable can be pulled tight but not released when the safety cover is closed.
- Max. clamping range: 6.2 cm
- Material: ABS
- Cable material: Steel with PVC coating
- Cable length: 244 cm
- Colour: Red
- Max. Operating temperature: 120 °C
- Min. operating temperature: -20 °C
4 padlock holes for attaching 4 safety padlocks
- Max. Padlock shackle diameter: 7.11 mm
- Min. padlock bracket height: 4.57 mm
Dimensions
- Dimensions - Width: 217.93 mm
- Dimension - Height: 177.29 mm
- Dimension - Depth: 64.77 mm
Material: | Glass-filled Nylon, PVC Coated Steel |
Padlock holes: | 4 |
Temperature range: | -20 °C tot +120 °C |
Dimension: | 217.93 mm (W) x 177.29 mm (H) x 64.77 mm (D) |
ATEX certified: | - |
Label: | Danger - do not operate |
Chemical resistant: | - |
Corrosion resistant: | - |
UV-stable: | - |
Color: | Red |
