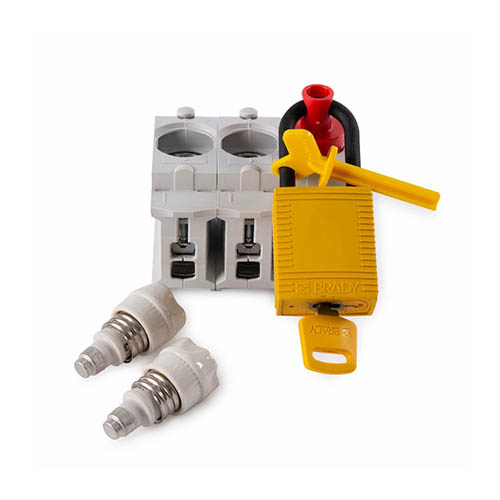

Insulation plugs with a lockout possibility for screw locks D01 & D02 (E14 & E18) and for DII & DIII (E27 & E33)

Article code 309018

€49,36

(€59,73 Incl. tax)

Article code 309018

Type

Buy 5 for €48,13 each and save 2,5%
Buy 10 for €46,89 each and save 5%
Buy 15 for €45,66 each and save 7,5%
Buy 20 for €44,42 each and save 10%

- +

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Prefer a quote first? Click on "request quote" in your shopping cart

Description
- Securing the fuse socket in case of maintenance.
- For D01 & D02 (E14 & E18) and for DII & DIII (E27 & E33) screw locks
- Not possible to mistakenly or unintentionally screw in bottle fuses.
- Includes a yellow key for locking and easy removal of the device from the screw base
- Thanks to stepwise tread diameters each of these lockout devices covers two common threads of DIAZED/NEOZED fuses:

  309018 - E14 or E18 (NEOZED D01+D02)
  309019 - E27 or E33 (DIAZED DII+DIII)
- Suitable for LOTO application. In comparison to many competition products, with a hole to insert a padlock with up to 6.5 mm shackle diameter.
- Dimensions:
  309018: 51mm H x ø 25mm
  309019: 60mm H x ø 40mm
- Hence, you can attach an appropriate lock with flexible cable in order to secure several bottle fuses in a row.
Neozed Type Dim. Amperage (A) Voltage (V) Article

D01 E14 2, 4, 6, 10, 164 400 Vac 83677

D02 E18 20, 25, 30, 35, 40, 50, 63 400 Vac 83677

Diazed Type Dim. Amperage (A) Voltage (V) Article

DII, KII E27 2, 4, 6, 10, 16, 20, 25, 30, 35 500 Vac 83680

DIII, KIII E33 35, 40, 50, 63 500 Vac 83680

Specifications

Material:	Nylon
Padlock holes:	1
Temperature range:	-4°C to +121 °C
Dimension:	Multiple
ATEX certified:	-
Suitable for:	E14, E18, E27 or E33
Chemical resistant:	Yes
Non-conductive:	Yes
Color:	Red and yellow

Add your review
0 stars based on 0 reviews

Securing the fuse socket in case of maintenance.
For D01 & D02 (E14 & E18) and for DII & DIII (E27 & E33) screw locks
Not possible to mistakenly or unintentionally screw in bottle fuses.
Includes a yellow key for locking and easy removal of the device from the screw base
Thanks to stepwise tread diameters each of these lockout devices covers two common threads of DIAZED/NEOZED fuses:

309018 - E14 or E18 (NEOZED D01+D02)
309019 - E27 or E33 (DIAZED DII+DIII)
Suitable for LOTO application. In comparison to many competition products, with a hole to insert a padlock with up to 6.5 mm shackle diameter.
Dimensions:
309018: 51mm H x ø 25mm
309019: 60mm H x ø 40mm
Hence, you can attach an appropriate lock with flexible cable in order to secure several bottle fuses in a row.

Neozed Type	Dim.	Amperage (A)	Voltage (V)	Article
D01	E14	2, 4, 6, 10, 164	400 Vac	83677
D02	E18	20, 25, 30, 35, 40, 50, 63	400 Vac	83677

Diazed Type	Dim.	Amperage (A)	Voltage (V)	Article
DII, KII	E27	2, 4, 6, 10, 16, 20, 25, 30, 35	500 Vac	83680
DIII, KIII	E33	35, 40, 50, 63	500 Vac	83680

Material:	Nylon
Padlock holes:	1
Temperature range:	-4°C to +121 °C
Dimension:	Multiple
ATEX certified:	-
Suitable for:	E14, E18, E27 or E33
Chemical resistant:	Yes
Non-conductive:	Yes
Color:	Red and yellow
