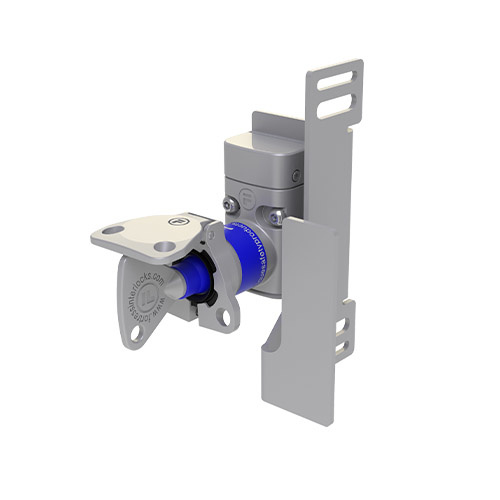

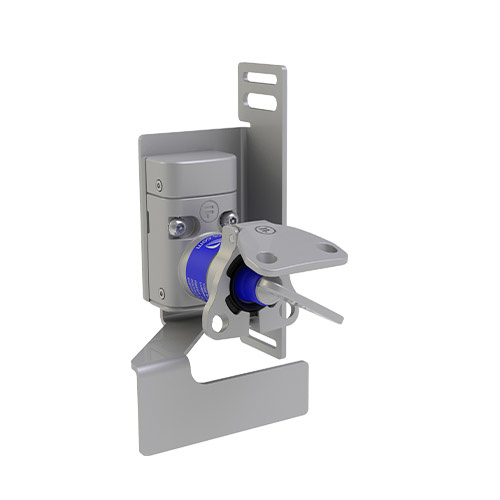

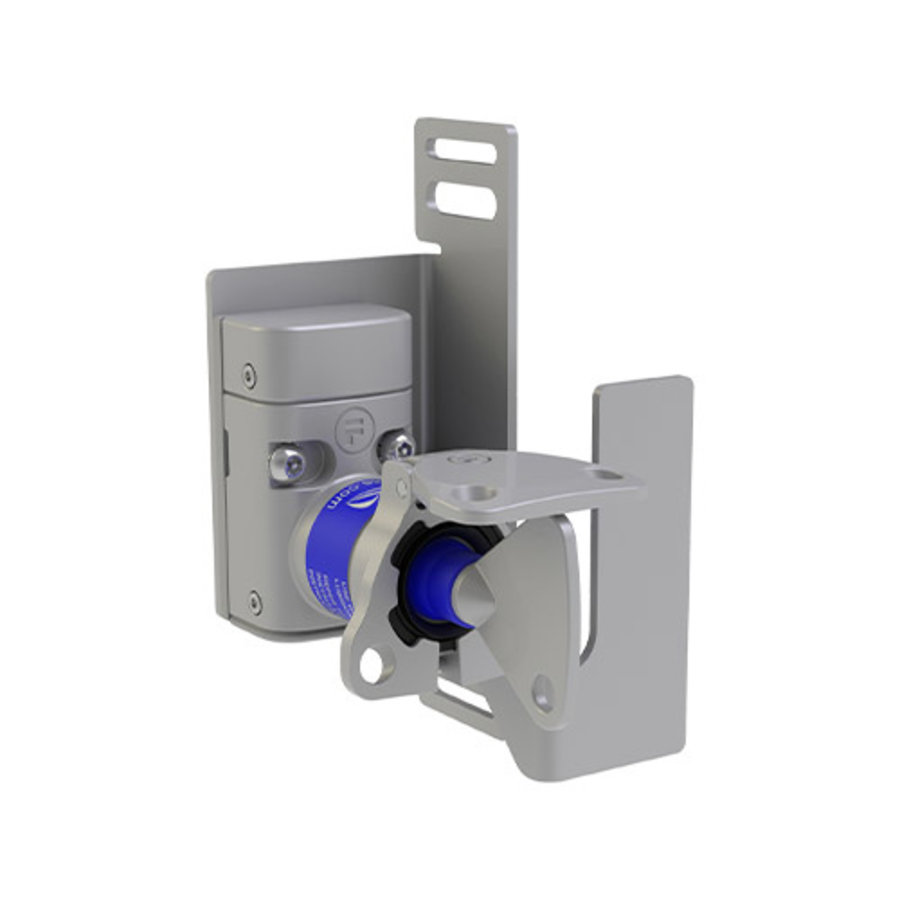

Prevent lockout during maintenance. When using the BRAVO, the use of a safety key becomes mandatory.

• Mechanical lock-in protection for light curtains
• Including stainless steel key.
• This universal blocking system blocks light beams and prevents machines from unintentionally restarting during work.
• Can easily be retro-fitted to any light curtain.
• Requires operators to carry a safety key when entering the area.
• Forced lockout tagout.
• 2 padlock holes (8mm Ø) for multi-operator access or major maintenance.

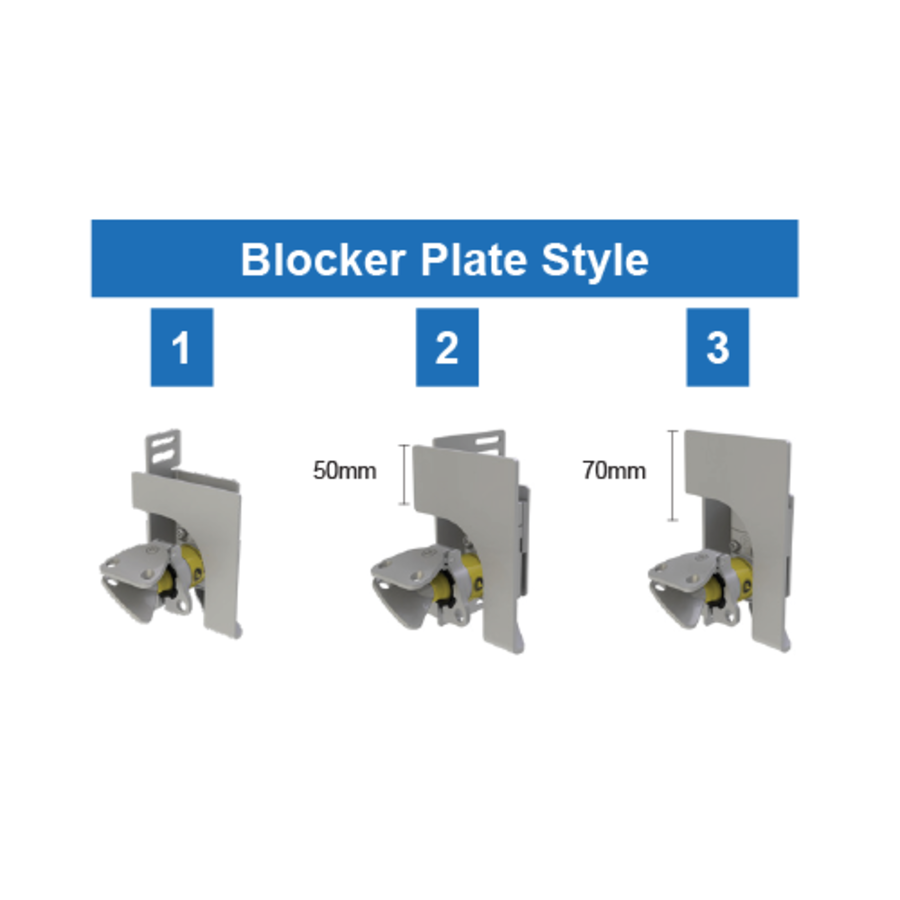

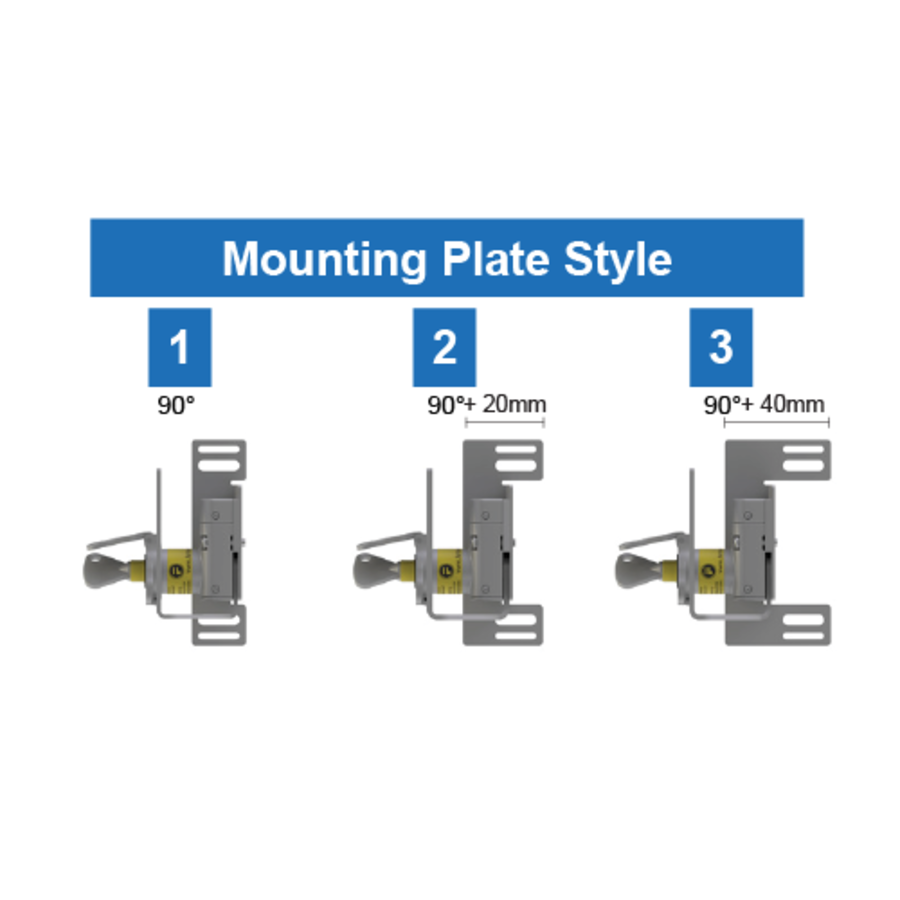

• Different sizes of blocking plates for mounting on column or guard rail
• Fully mechanical (no wiring).
• Simple mounting by means of sliding nuts.
• Obligatory key removal.
• 200,000 unique key codes.
• Optional free laser engraving (3 lines of 10 characters).
• Fully stainless steel 316.
• Very robust.


• Download more technical specifications here

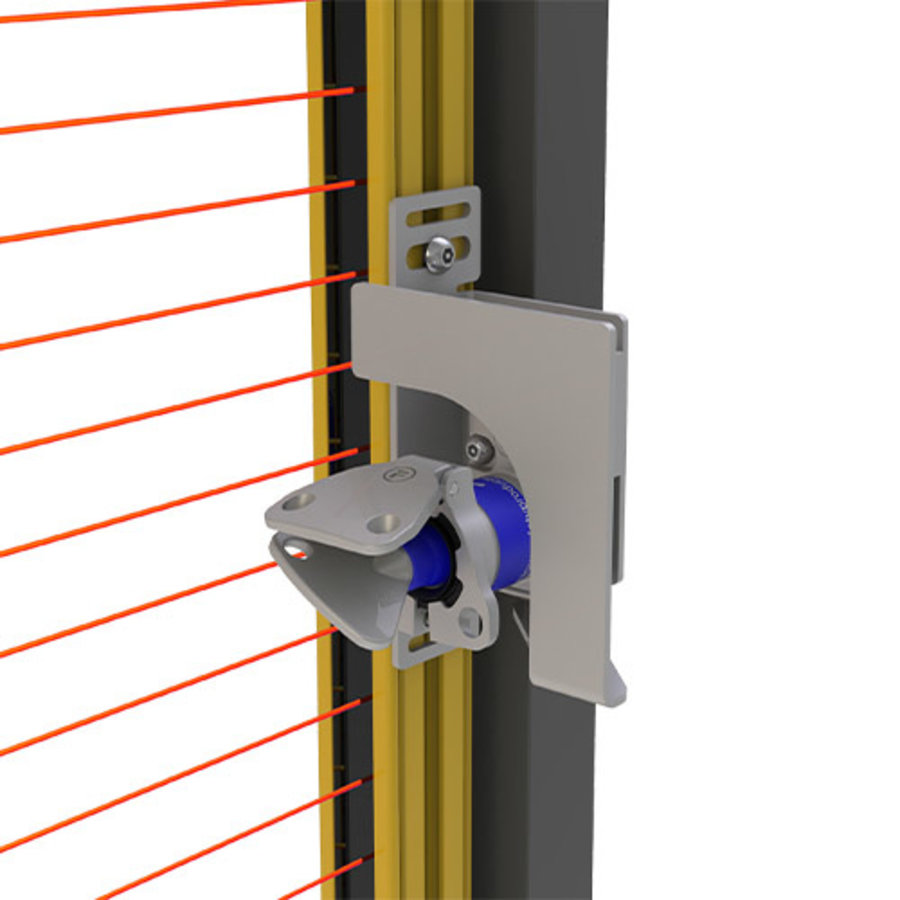

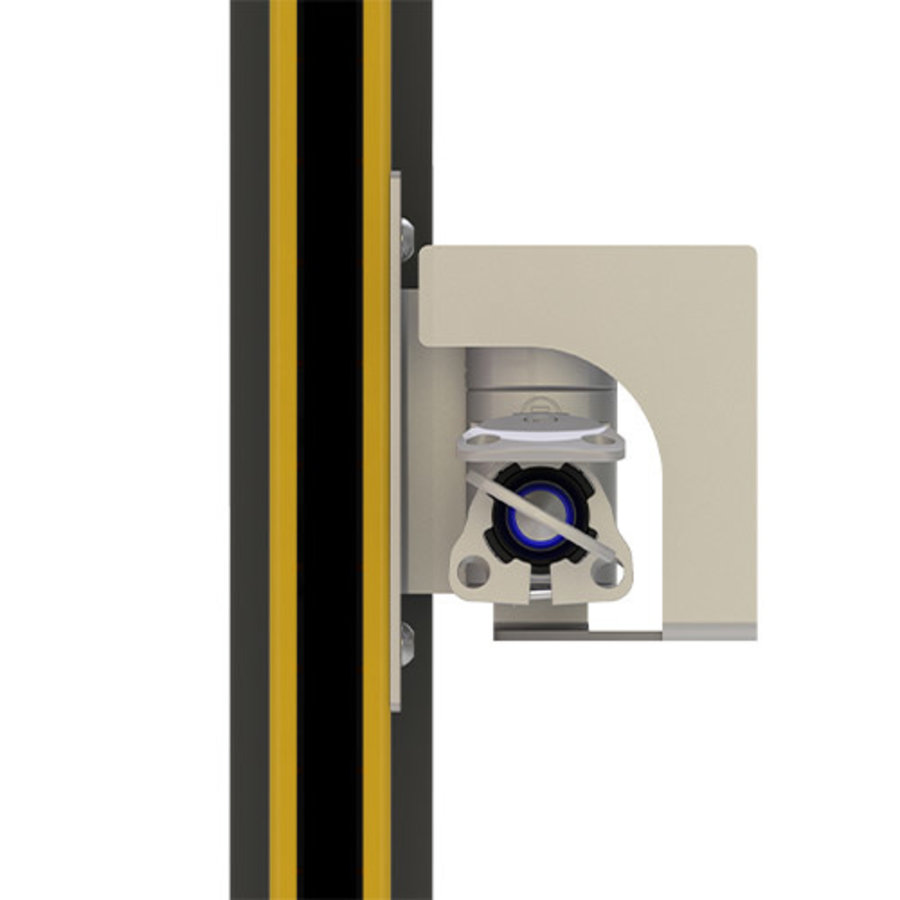

The Bravo interlock blocking device in operation
The blocking device blocks the light beams of a light curtain by turning the coded key. This prevents the safety contacts of the light curtain from being switched. When the light curtains are broken, the coded key can be removed.

The coded key can only be removed when the blocking device breaks the light curtain's beams. The operator takes this safety key with him into the protected zone, making unintentional restart or reset of the machine impossible.

The Bravo interlock blocking device can be equipped with 2 padlocks, this prevents the entry of the safety key when several operators enter the area.

De Bravo insluitbeveiliging in werking
De insluitbeveiliging blokkeert de lichtstralen van een lichtscherm door de gecodeerde sleutel te draaien. Hierdoor kunnen de veiligheidscontacten van het lichtscherm niet worden geschakeld. Wanneer de lichtschermen worden verbroken kan de gecodeerde sleutel worden uitgenomen.

De gecodeerde sleutel kan enkel uitgenomen worden wanneer de blokkeerinrichting de stralen van het lichtscherm verbreken. De operator neemt deze veiligheidssleutel mee de beveiligde zone in waardoor onbedoelde herstart of reset van de machine onmogelijk is.

De Bravo insluitingsbeveiliging kan worden voorzien van 2 hangsloten, dit voorkomt het invoeren van de veiligheidssleutel wanneer meerdere operators de ruimte betreden.
