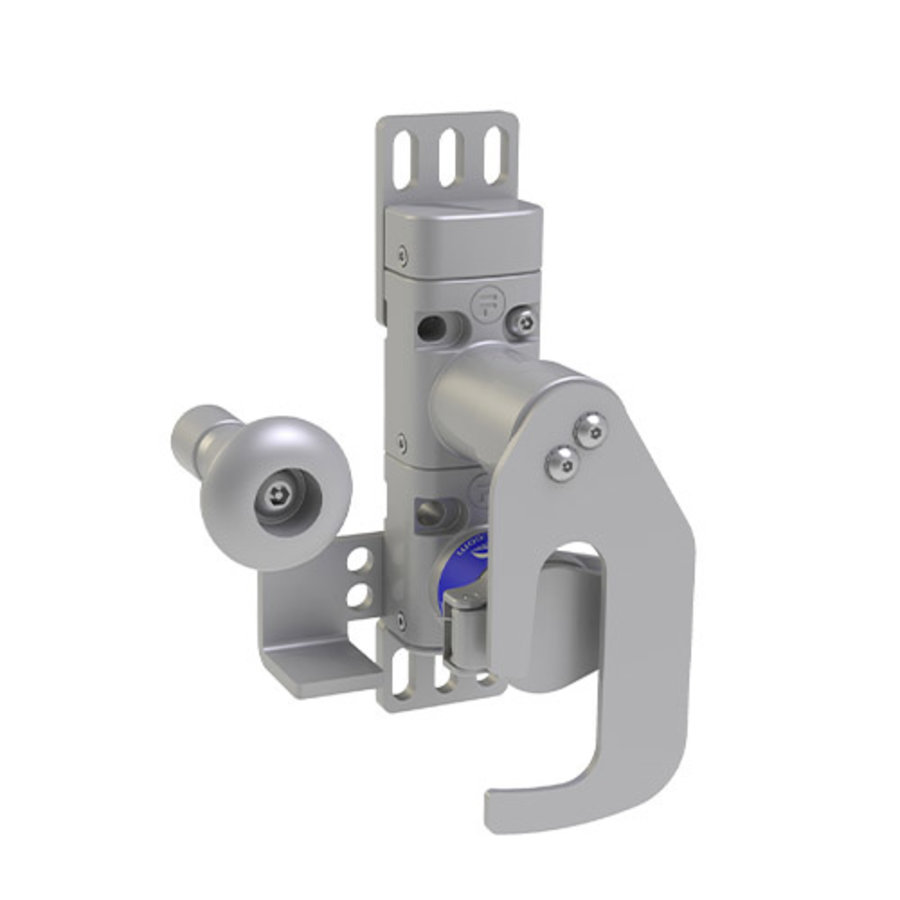

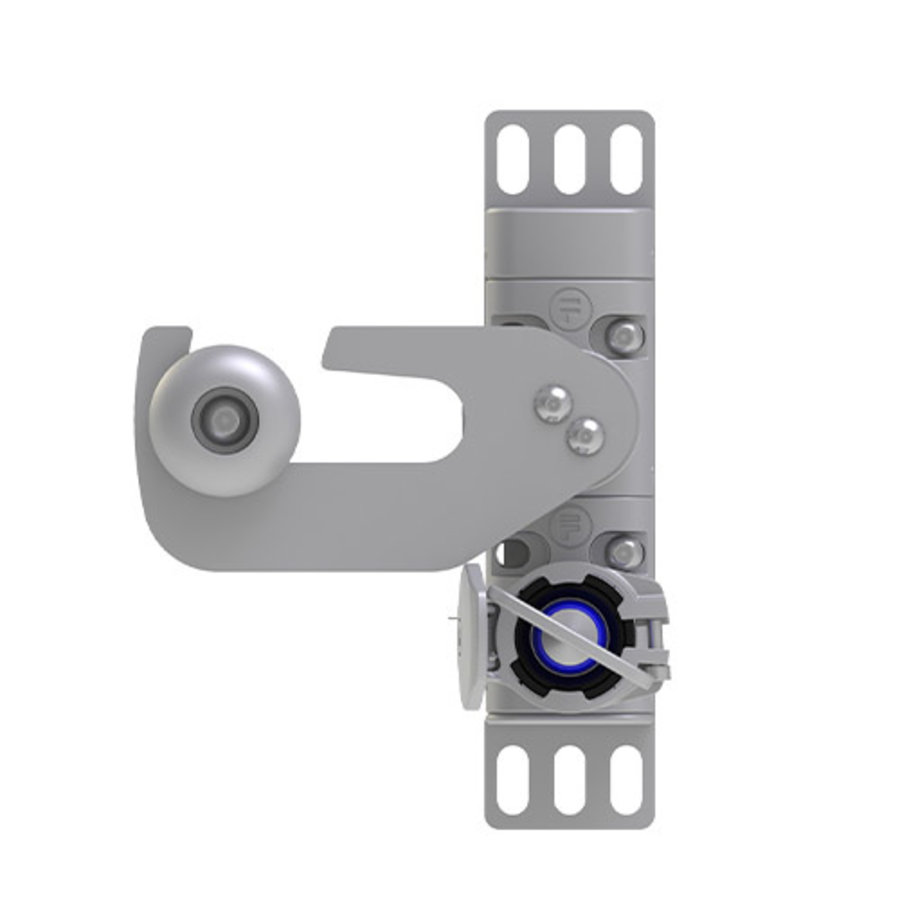

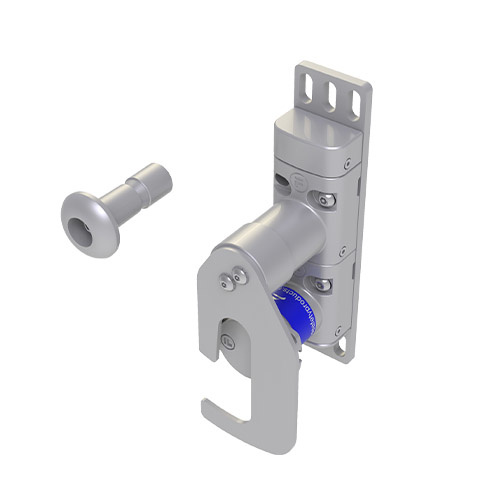

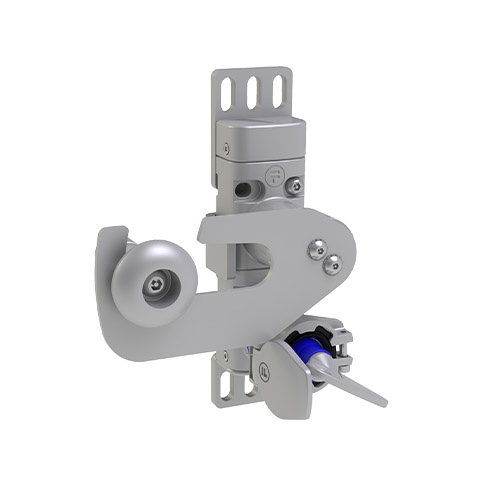

• Mechanical lock-in prevention device for sliding doors
• Including stainless steel key.
• Universal Interlocks blocking device prevents accidental machine restart during maintenance.
• Easy retrofit installation onto every access door.
• Obligates operators to extract a safety key before access to the safeguarded area.


• Mandatory Lockout-Tagout
• 2 padlock holes (8mm Ø) for access with multiple operators or during major maintenance.
• Max. door depth 80mm.
• Completely mechanical (no wiring).
• Extracted key function
• 200,000 unique key codes
• Option free key and lock laser engraving (3 lines of 10 characters).
• Completely stainless steel 316.
• Durable and robust design.
• There is also a version for hinged doors available.



• Download more technical specifications here

To prevent accidental lock-in of operators often a safety padlock is used. The ALPHA makes the use of a safety key mandatory.

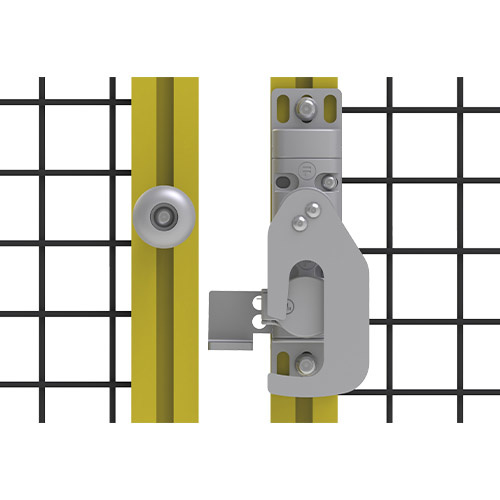

Door Closed

The ALPHA interlock blocking device prevents opening an access door until the unique coded key is turned and extracted. The ALPHA then block the door from closing and in doing so switching the safety contact of the door switch until the safety key is returned in the lock

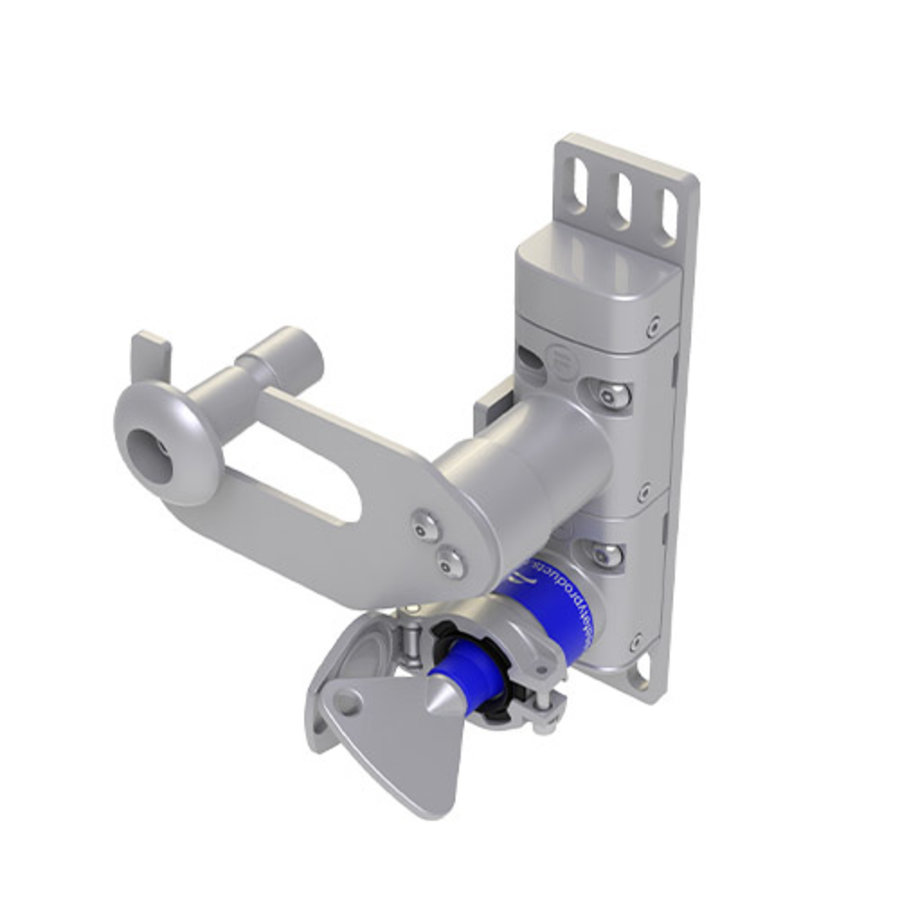

Door Open

The ALPHA ensures the door can only be opened when the safety key is removed. As long as the operator is present in the safeguarded area (with the safety key), the door cannot close and the machine cannot restart.
