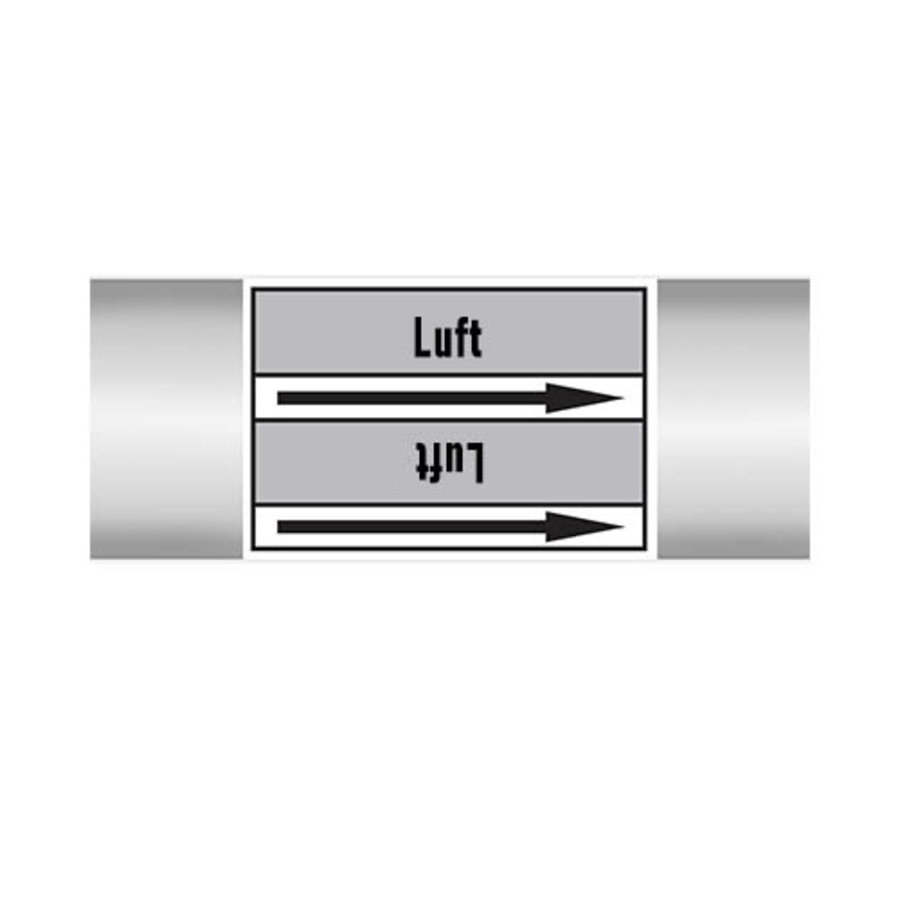

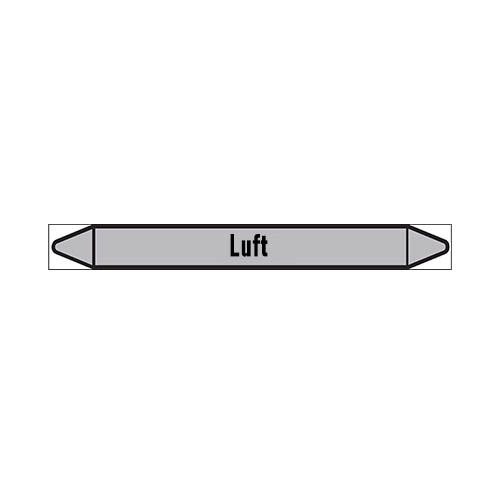

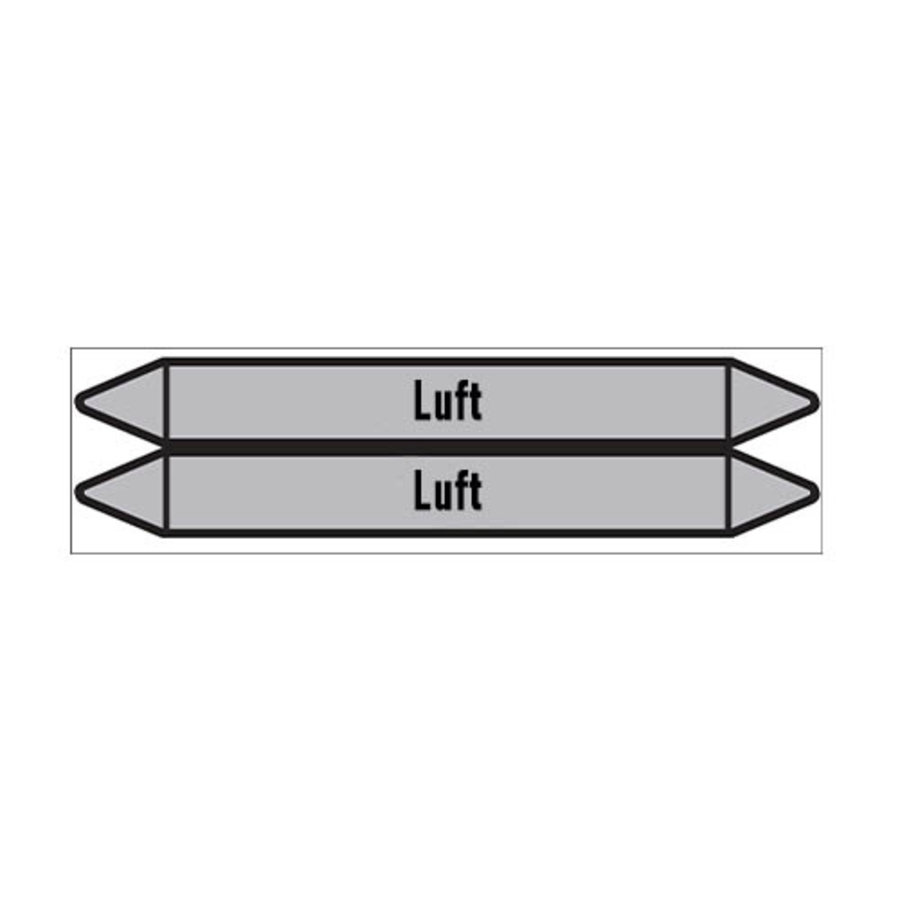

Pipe markers for Druckluft in German with legend and text. Category: Luft.
Available in multiple sizes and on or without a liner.

€12,88

Variant

- +

Ordered before [time], delivered tomorrow! You got 03:39 hours

Request for quotation

Full warranty on all our products

Request for quotation

Full warranty on all our products

Prefer a quote first? Click on "request quote" in your shopping cart

Description

European standard pipe markers for Druckluft.
Category: Luft
Text in German.
With the symbols: -
Signal word: -
Available in multiple sizes, see chart
Markers are printed with a contrasting border in the same colour as the text for improved visibility.

Perforated arrowhead on both sides: to indicate the flow direction of the substance simply remove
one of the arrowheads (1).
For Dangerous Substances the Chemical symbols conform to European regulations 1272/2008, 790/2009 and 286/2011 (2).
Colours in accordance with (local) legislation (3).
Substance name: wide range of legends available, to comply with the country regulations (4).
Signal word depending on the substance, in accordance with CLP regulations (5).
High-quality materials: self-adhesive laminated polyester with low chlorine content that is resistant to chemical, ultraviolet rays and extreme weather conditions (6).

pipe marker

CLP danger symbols

Type	Lenght	Height	Character (h)	Amount	Pipe diameter	on liner / linerless
On card	150 mm	12 mm	8,00 mm	5	<20 mm	on liner
On card	250 mm	26 mm	13,30 mm	4	20 mm - 49 mm	on liner
On card	355 mm	37 mm	16,50 mm	3	50 mm - 99 mm	on liner
On card	450 mm	52 mm	22,50 mm	2	100> mm	on liner
On roll	100 mm	60 mm	8,00 mm	505	<70 mm	on liner
On roll	127 mm	60 mm	8,30 mm	505	<70 mm	on liner
On roll	100 mm	150 mm	13,00 mm	220	70> mm	on liner
On roll	127 mm	150 mm	13,30 mm	220	70> mm	on liner
On roll	250 mm	26 mm	13,30 mm	30	20 mm - 49 mm	linerless
On roll	355 mm	37 mm	16,50 mm	30	50 mm - 99 mm	linerless
On roll	450 mm	52 mm	22,50 mm	30	100> mm	linerless
On roll	100 mm	60 mm	8,00 mm	505	<70 mm	linerless
On roll	127 mm	60 mm	8,30 mm	505	<70 mm	linerless
On roll	100 mm	150 mm	13,00 mm	220	70> mm	linerless
On roll	127 mm	150 mm	13,30 mm	220	70> mm	linerless

Specifications

Substance:	Druckluft
Danger symbols:	In accordance with the CLP regulation
Color:	Black text on a grey background
Material:	Self-adhesive laminated polyester
Temperature range:	-40°C to +120 °C
Weatherproof:	yes
UV-resitant:	Yes
Chemical resitant:	Yes
Language:	German
